Glass Vacuum Lifter Manufacturer & Supplier

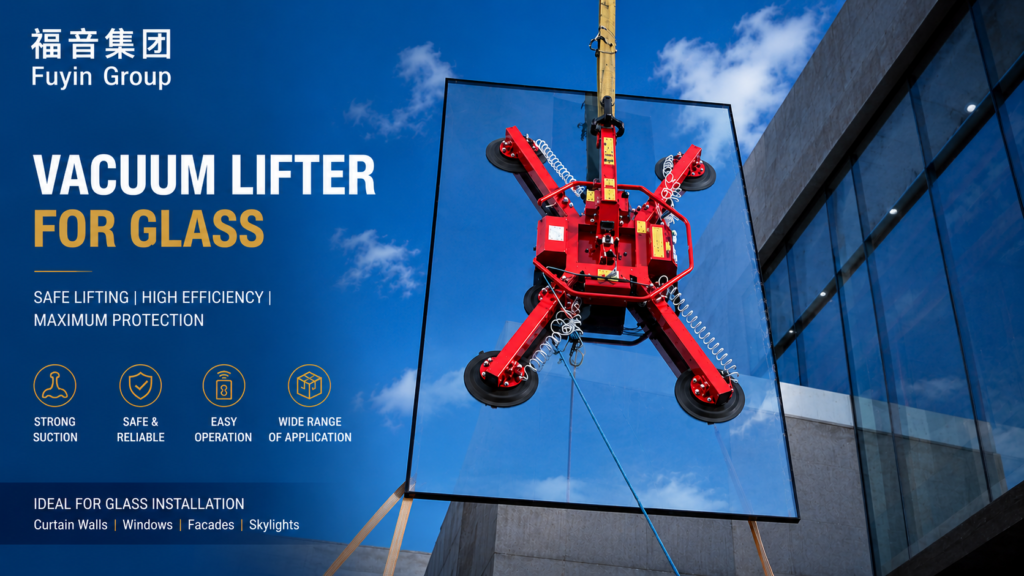

The Fuyin Manual Glass Vacuum Lifter is designed for the safe lifting, transportation, and installation of glass panels in factories and construction sites. Featuring a DC12V rechargeable battery, manual 90° flip, and manual 360° rotation, it provides precise glass positioning while reducing manual labor and improving workplace safety. Suitable for laminated glass, tempered glass, insulated glass (IGU), curtain wall glass, and jumbo glass, our manual vacuum lifters are available in capacities ranging from 250 kg to 2,000 kg, making them an ideal solution for professional glass processors and façade contractors worldwide.
With manufacturing in China and sales offices in the UAE and USA, we provide complete glass handling solutions for laminated glass, insulated glass (IGU), tempered glass, jumbo glass, curtain walls, skylights, glass façades, and architectural glass.
Our vacuum lifters are designed for maximum safety, easy operation, and reliable performance, making them suitable for both factory production lines and on-site installation.
MFR-S Series Manual Glass Vacuum Lifter - Indoor and outdoor operation
| Specification | Details |
|---|---|
| Model | MFR-S Series |
| Safe Load Capacity | 400 kg / 600 kg / 800 kg |
| Vacuum System | Single Vacuum System |
| Power System | DC 12V Rechargeable Battery |
| Flip Function | Manual 90° |
| Rotation Function | Manual 360° |
| Equipment Weight | 100 kg |
| Number of Suction Cups | 4 / 6 / 8 (Depending on Model) |
| Application | Glass |
| Working Environment | Indoor & Outdoor Use |
| Control Method | Manual Control with Wireless Remote Control for sucker Attach & Release |
| Vacuum Safety | Single Vacuum System with Vacuum Pressure Monitoring, Audible & Visual Alarm |

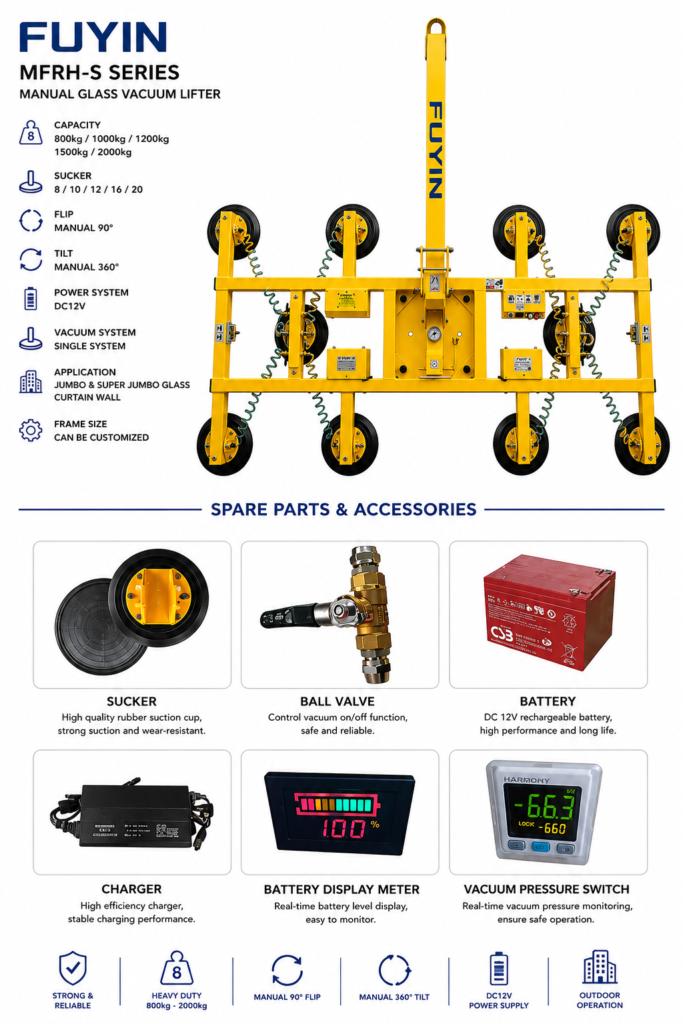

MFRH-S Series Manual Glass Vacuum Lifter - Indoor and outdoor operation
| Specification | Details |
|---|---|
| Model | MFRH-S Series |
| Safe Load Capacity | 800 kg / 1000 kg / 1200 kg / 1500 kg / 2000 kg |
| Vacuum System | Single Vacuum System |
| Power System | DC 12V Rechargeable Battery |
| Flip Function | Manual 90° |
| Rotation Function | Manual 360° |
| Number of Suction Cups | 8 / 10 / 12 / 16 / 20 (Depending on Model) |
| Frame Size | Customizable to Suit Glass Dimensions |
| Working Environment | Outdoor Operation |
| Application | Jumbo Glass, Super Jumbo Glass, Curtain Wall Glass |
| Control Method | Manual Control with Wireless Remote Control for Vacuum Attach & Release |
| Vacuum Safety | Single Vacuum System with Vacuum Pressure Monitoring, Audible & Visual Alarm |
MFRI-D Single Cup Manual Vacuum Lifter -Dual System- Indoor and outdoor operation
| Specification | Details |
|---|---|
| Model | MFRI-D |
| Safe Load Capacity | 250 kg / 375 kg |
| Vacuum System | Dual Vacuum System |
| Power System | DC 12V Rechargeable Battery |
| Flip Function | Manual 90° |
| Rotation Function | Manual 360° |
| Number of Suction Cups | 1 |
| Equipment Weight | 55 kg |
| Applications | Glass, Steel Sheet, Composite Panels |
The dual independent vacuum circuits provide an additional level of safety. Under normal operating conditions, the vacuum lifter can safely handle loads of up to 500 kg or 750 kg. If one vacuum circuit loses pressure or fails, the second independent circuit can continue to securely hold up to 250 kg or 375 kg, allowing the operator to safely lower the load and helping prevent accidental drops.
MFR-D Series Manual Glass Vacuum Lifter - Indoor and outdoor operation
| Specification | Details |
|---|---|
| Model | MFR-D Series |
| Safe Load Capacity | 200 kg / 300 kg / 400 kg |
| Vacuum System | Single Vacuum System |
| Power System | DC 12V Rechargeable Battery |
| Flip Function | Manual 90° |
| Rotation Function | Manual 360° |
| Equipment Weight | 100 kg |
| Number of Suction Cups | 4 / 6 / 8 (Depending on Model) |
| Application | Glass |
| Working Environment | Indoor & Outdoor Use |
| Control Method | Manual Control with Wireless Remote Control for sucker Attach & Release |
| Vacuum Safety | Dual independent vacuum circuits |
The dual independent vacuum circuits provide an additional level of safety. Under normal operating conditions, the vacuum lifter can safely handle loads of up to 400KG/600KG/800KG kg. If one vacuum circuit loses pressure or fails, the second independent circuit can continue to securely hold up to 200KG/300KG/800KG, allowing the operator to safely lower the load and helping prevent accidental drops.
Why Choose Fuyin Glass Vacuum Lifters?
At Fuyin Group, we supply professional glass vacuum lifters designed for maximum safety, reliability, and efficiency. Our lifting equipment is trusted by glass processors, façade contractors, curtain wall installers, and construction companies worldwide.
✅ Designed for Maximum Safety
Every vacuum lifter is engineered with high-quality components and advanced vacuum technology to ensure secure lifting and safe glass handling.
✅ Wide Range of Models
From compact 250 kg units to heavy-duty 2,000 kg vacuum lifters, we provide solutions for every glass handling application.
✅ Indoor & Outdoor Applications
Our vacuum lifters are suitable for factory production lines, warehouses, construction sites, and curtain wall installation projects.
✅ Manual, Electric, Hydraulic & Pneumatic Models
Choose from manual flip, electric flip, hydraulic flip, or pneumatic vacuum lifters to match your operational requirements.
✅ Custom Engineering
Frame size, suction cup layout, lifting capacity, and special functions can be customized for jumbo and super jumbo glass.
✅ Premium Components
We use high-quality vacuum pumps, durable rubber suction cups, reliable electrical components, and heavy-duty steel frames for long service life.
✅ Spare Parts Availability
We maintain a complete inventory of genuine spare parts, ensuring fast replacement and minimal equipment downtime.
✅ Technical Support
Our experienced technical team provides product selection assistance, installation guidance, troubleshooting, and after-sales support.
✅ Global Supply
Manufactured in China with sales offices and technical support in the UAE and USA, serving customers worldwide.
✅ CE Certified Quality
Our vacuum lifting equipment is manufactured to meet international quality and safety standards for professional glass handling.
